Using Reelmaster 2-Roll Shaft less 165 cm (65")
Maximum web width:
Using Reelmaster 4-Roll Shaft less 140 cm (55")

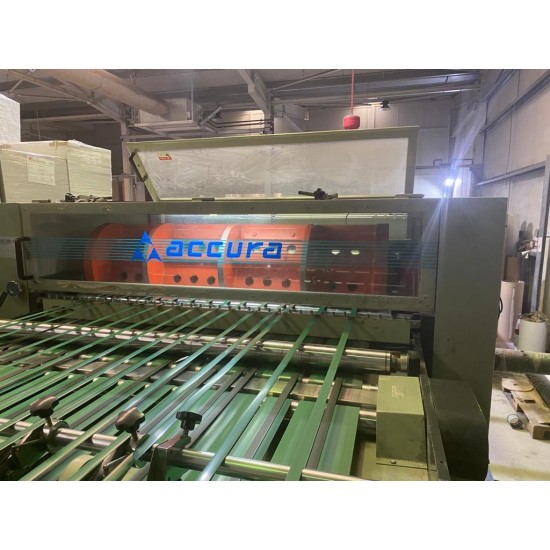

The up knife is rotary and the down knife is fixed.

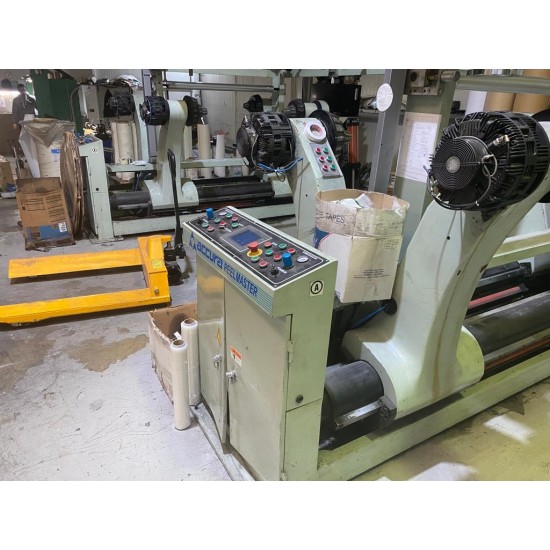

Unwinder rolls: 4
>Maximum Linear Speed: 250 m/min (cutting 1 roll of 200 GSM board)
>Maximum Cut Frequency: 400 cuts/min (cutting 1 roll of 200 GSM board)
>Maximum Knife Load: 45-500 GSM
>Sheet Length Range: 40-140cm (16"-55")
>Maximum Gross Pile Height: 150 cm (60")
>Maximum Gross Pile Weight: 1500 Kg
>Electrical Power Load: 21 kW
>Electrical Power Supply: 220/380 Volts
>Machine Dimensions: 18 m x 4 m
>Total Gross Weight: 11.000 kg
